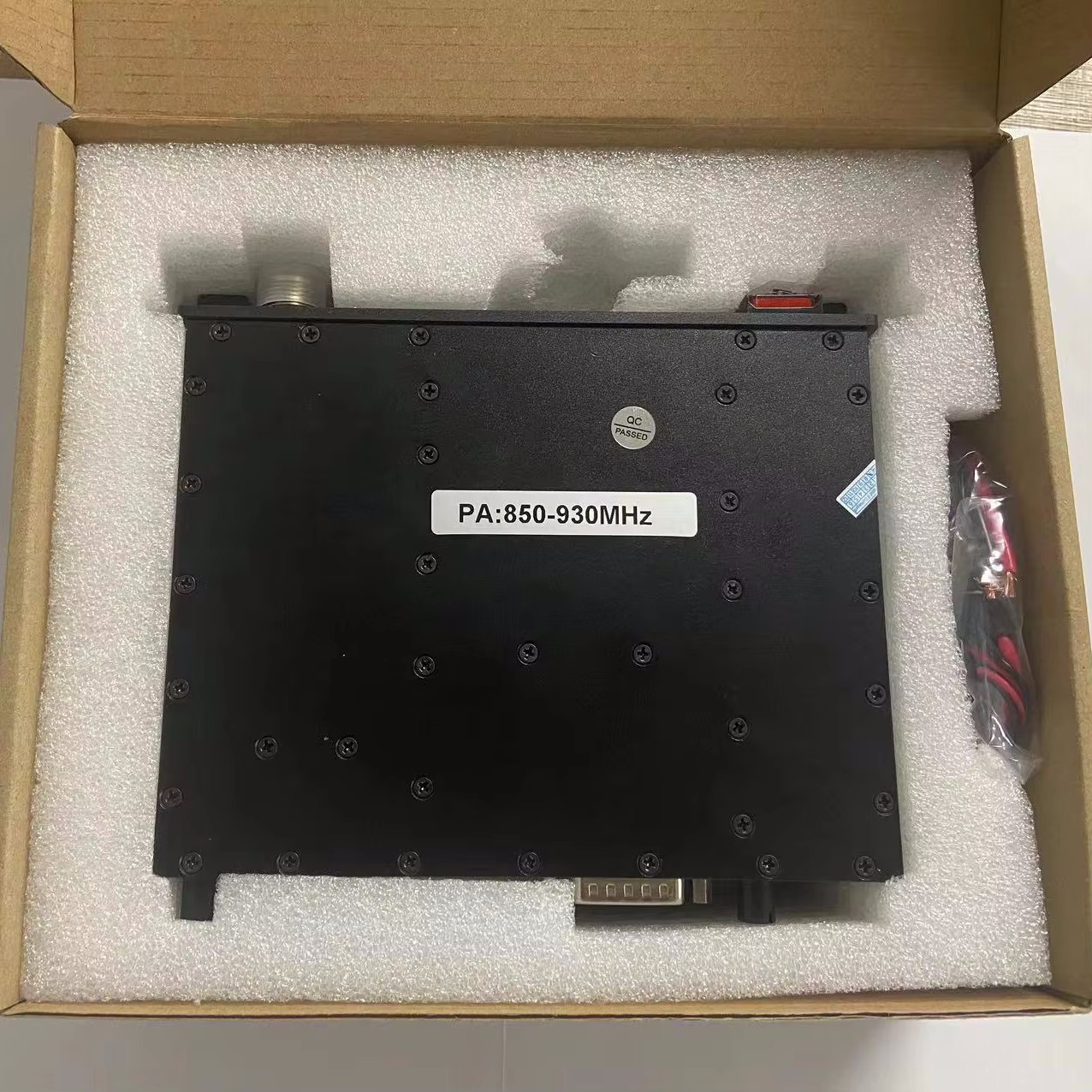

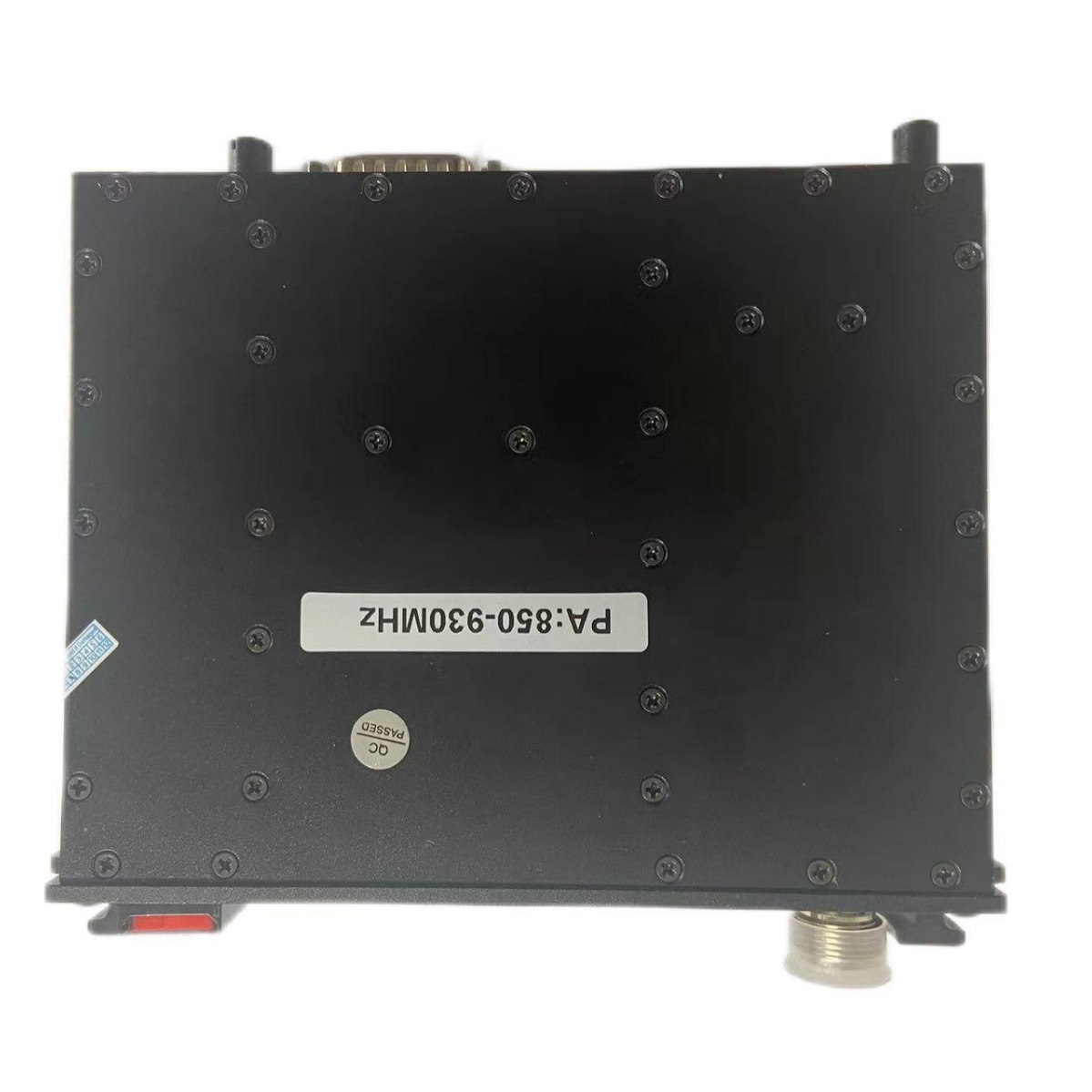

10-100w drone jammer module with cooling fan

DDS 400-470 High power integrated module 100W broadband amplifier with Alarm switch over-temperature alarm autel anti fpv drone

Drone blocker module with Alarm switch over-temperature alarm autel anti fpv drone

DDS-04

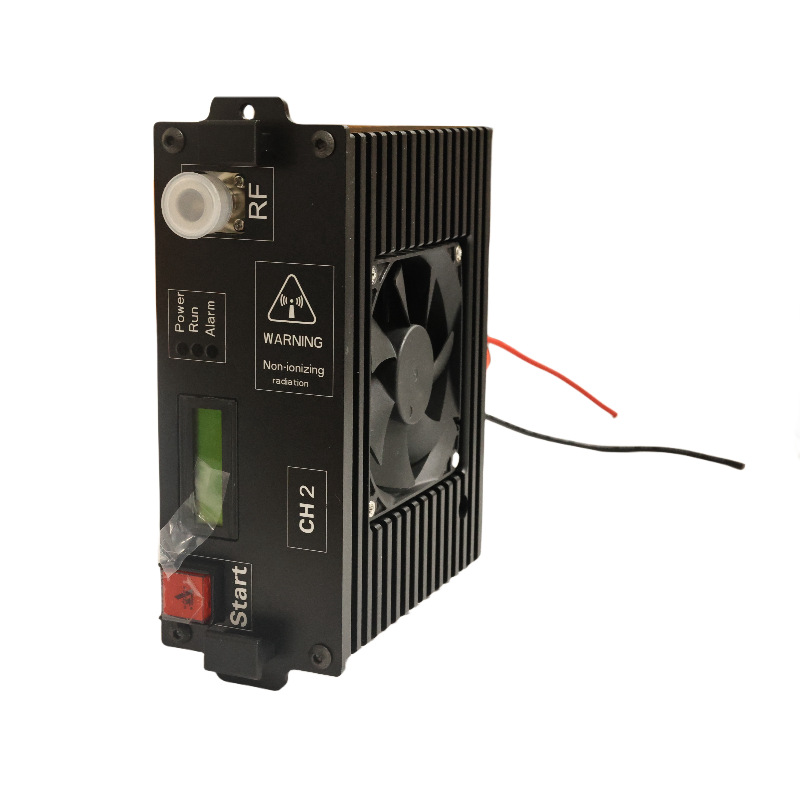

LCD liquid crystal display: Display the frequency, power, and switch status

With 3 LED lights: POWER: Power indication; RUN: operation indication; ALARM: alarm indication;

Bring your own cooling fan: The module can be run separately

Appearance size: 155 x 125 x 60mm

Weight: 1.6Kg

Specification

Working voltage	28 V
Transfer Efficiency	≥42%
Controlled output power	10W~100W
The ALC power adjustment range	≥30dB
Gain	50±1.0dB
Intra-band fluctuations	≤2.5dB
Maximum allowable input power	≥+10dBm
Input voltage standing wave ratio	≤1.35
Power supply requirements	≥8A @+28V dc
Power supply interface	7W2
RF output connector	N-F connect
LCD liquid crystal display	Display the frequency, power, and switch status
With 3 LED lights	POWER: Power indication; RUN: operation indication; ALARM: alarm indication;
Bring your own cooling fan	The module can be run separately
Appearance size	155 x 125 x 60mm
Weight	1.6Kg
Appearance and shape (usage mode)	Black all-in-one module with fan (used alone or portable)
