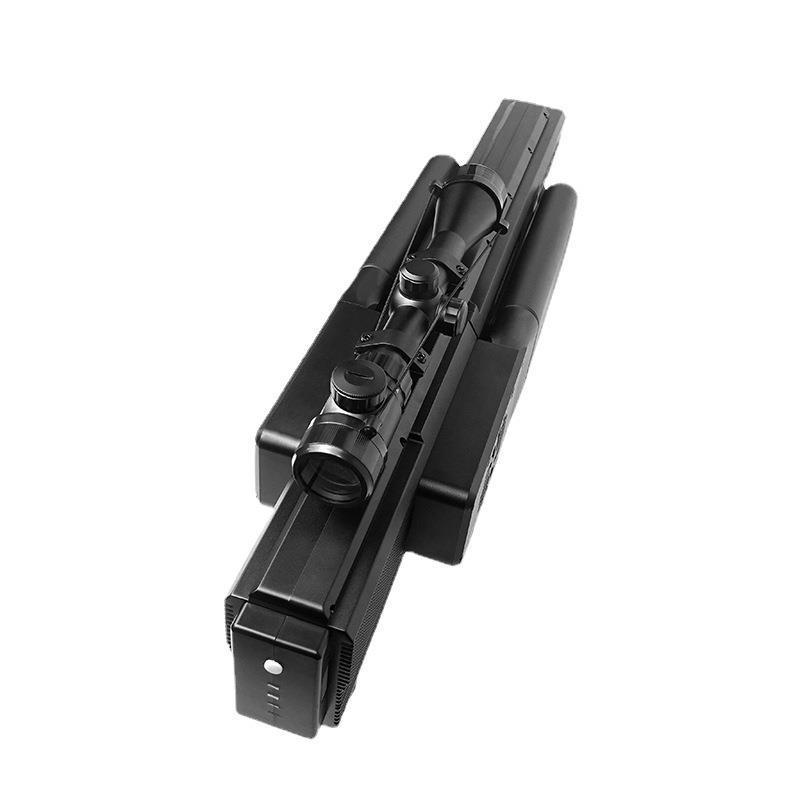

Customizeable bands Factory Supply 8 Bands Drone Jammer Gun

Feature
1.High-gain 12-15dbi built-in antenna, Jamming range up to 1.2KM.
2.Working for more than 40-50 minutes with fully charged.
3. the customer can switch according to their requirements.
4. There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand. 5.Independent design of control switch, aiming at stopping peeping, driving away, and forcing to land.

Parameter

Moduel No:	GW-UAV102P8		Frequencices:		8 Bands
Channel		Working Frequency		Output Power(±1dBm)
CH1	5.8G	5725-5850MHz		45 dBm(30w)
CH2	5.2G	5150-5250MHz		45 dBm(30w)
CH3	2.4G	2400-2485MHz		46 dBm(40w)
CH4	1.5G	1556-1610MHz		43 dBm(20w)
CH5	1.4G	1370-1390MHz		40 dBm(10w)
CH6	1.2G	1170-1280MHz		40 dBm(10w)
CH7	900	920-960MHz		43 dBm(20w)
CH8	433	433 MHz		40 dBm(10w)
Power Supply Mode		Inside battery	28V, 8AH
		Or external battery
Turn on/off		8 Independent switch for each band
Total Power		150w
Battery Working Time		40-50 munites
Working Temperature		-20ºC to +55ºC
Weight		7.08KG, Packing Weght: 11.6KG
Size		85326782mm
Directional Panel Antenna		12-15dBi
