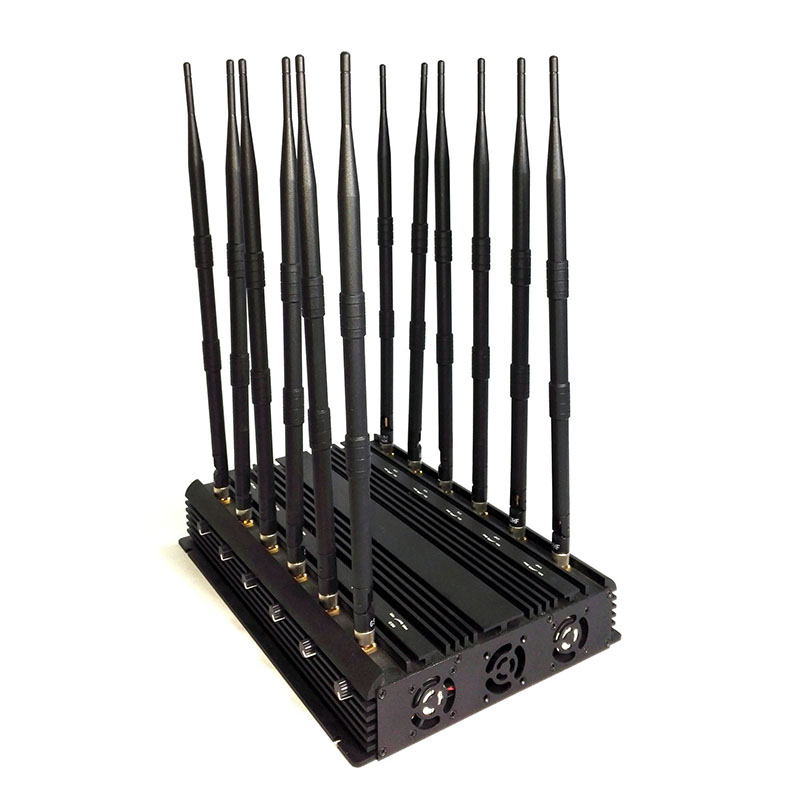

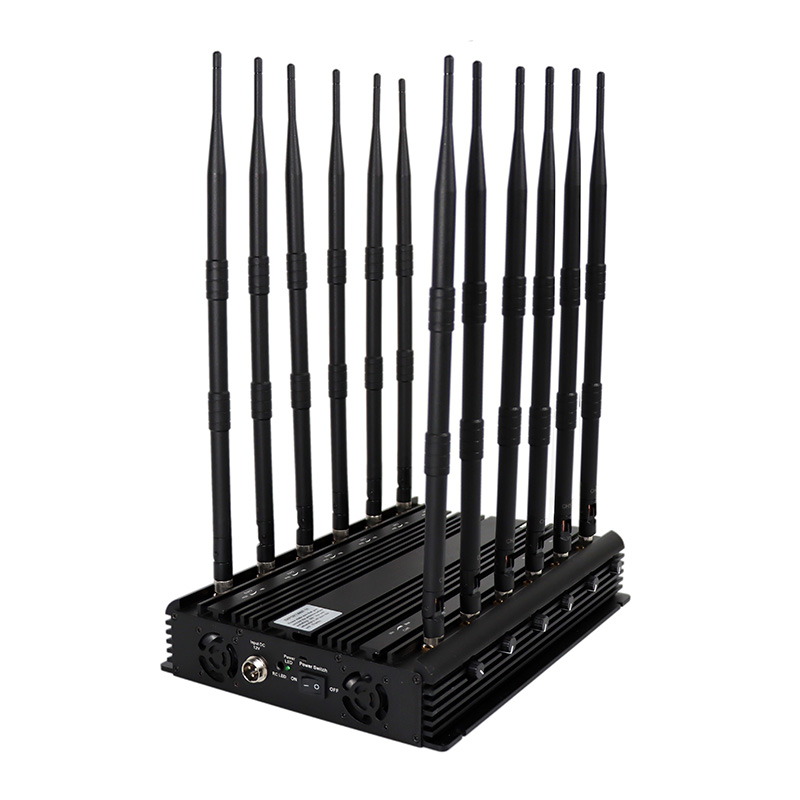

12 Antennas Wireless Signal Jammer For GSM 3G 4G 5G Wi-Fi GPS LOJACK Shielding Radius Up to 40m

Basic Specifications
Model: DL12
Color: Black

Jammer Signal Type: Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1L2L5 or Walkie-Talkie UHF/VHF+LOJACK/RC433/RC315/RC868/LORA

Output Power:Total 22-36W,1-3W each band
Jam Radius:2-40meters
Power Supply:AC110 or 220V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 4 cooling fan
Working Time:Not-stop Working
Product Size:330x 238x 60 mm(not Include Antenna)
Product Weight: appr.6kg

Advantages:

12 bands multifunction design, Customized for special frequency range

High output power, Total up to: 22-36W , jamming up to 40m (Still depends on the strength signal in given area)

Connect with high gains external Omni-directional antennas

With car storage battery cable DC12V can be used in car

Built-in good cooling system inside, Working non-stopped

Can adjust or turn off any single band without influencing the other bands operation

Option:2-5meters with Infrared Remote Control Turn ON /OFF Power

Key technical specifications: Customized 2G 3G 4G 5G Wi-Fi UHF VHF GPS Signal Jammer 12
Channel	Output port	Frequency range	Average out-putting power(±1dbm)
1	CDMA/GSM&LORA	851-894 /900-960MHz	35dbm / 3W
2	DCS/PCS	1805-1880/1920-2000MHz	33dbm / 2W
3	3G	2110-2180MHz	33dbm / 2W
4	4GLTE Low	698-803 or 738-821MHz	35dbm / 3W
5	4GLTE High	2496-2690 or 2570-2690MHz	30dbm / 1W
6	WIFI2.4G/4G2300	2400-2485 or 2300-2485MHz	30dbm / 1W
7	5G3300/3500	3300-3600MHz	30dbm / 1W
8	5G3700	3600-3900MHz	30dbm / 1W
9	5G600 or 5G1500	617-698 or 1427-1518MHz	35dbm / 3W
10	WIFI5G	5125-5850MHz	30dbm / 1W
11	GPS&Glonass L1	1560-1610MHz	33dbm / 2W
12	VHF&LOJACK	135-175MHz	35dbm / 3W
Option	UHF/RC433	400-470MHz	35dbm / 3W
	RC315	310-320MHz	35dbm / 3W
	GPSL2L3L4L5	1170-1390MHz	33dbm / 2W
